Marmox FireBoard
€23,00

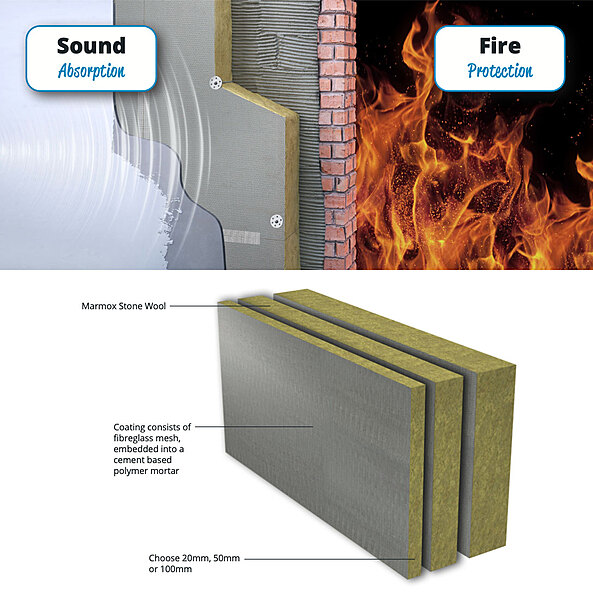

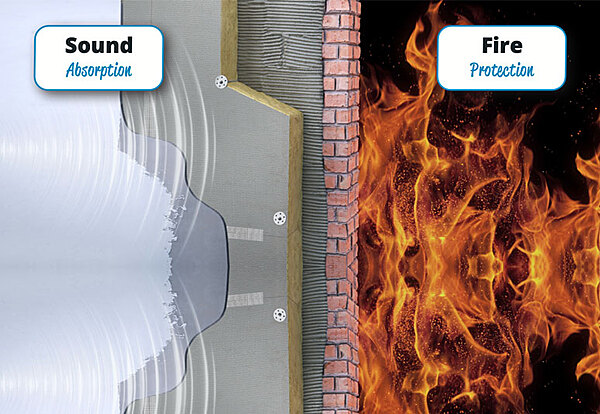

NEW Marmox Fireboard provides A1 fire resistance and both acoustic & thermal insulation in a lightweight board.
These External Wall Insulation (EWI) boards are designed for use with masonry, timber and steel frame constructions, offering fireproofing and insulation to walls and ceilings, both internally and externally.
Not only fire protection, Marmox Fireboard is also a weather proof barrier which will not degrade, however wet it gets! Also, being made from mineral wool, the boards provide very good sound decoupling and sound absorption properties.
Choose Quantity
Specification
Technical Data
| Sound Absorption | UKAS Testing (pdf test report available upon request) |
| Thermal Conductivity (λ value) | 0.037W/mK |
| Resistance to Fire testing (Class A1 certification) | Tests required passing in order to achieve Euroclass A1 certification: EN 1182 (Non-combustibility test - carried out by Effects, 2018) EN 1716 (Bomb calorimeter test - carried out by BRE, 2022) EN 13823 (Single burn test - carried out by BRE, 2022) |
| Compressive Strength (to 10% deformation) | 90kN/m² (Equivalent to 90kPa or 9 tonnes/m² - Three times that of ordinary mineral wool) |
| R Values | Varies with board thickness, for example: 20mm = 0.5m²K/W 100m = 2.3m²K/W 200mm = 4.7m²K/W |
| Expansion Coefficient | 8 x 10-6K-1 (fairly similar to concrete) |
| Density of Stone Wool | 150kg/m³ |
Dimensional Data
| Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|
| 1200 | 600 | 12.5mm | 1.35KG |
| 1200 | 600 | 20mm | 2.16 KG |
| 1200 | 600 | 50mm | 5.4 KG |
| 1200 | 600 | 100mm | 10.8 KG |
